Vet. Surgical Resources, Quality Products for Veterinary Surgery

Product Catalog - Large Animal Laparotomy Sheets

Large animal laparotomy sheets with enterotomy pouches

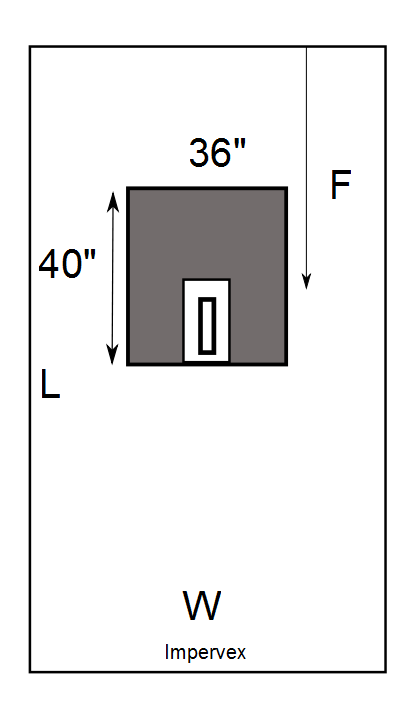

Lap Sheet Drawing All laparotomy sheets and enterotomy pouches are assembled using Impervex material. Enterotomy pouch is 36" X 40" (91 cm X 102 cm) with plastic interior and exterior to minimize sticking of the bowel and allows the surgeon to easily contain the bowel. Fenestration is centered in drape. Laparotomy sheets are also available as special order items with tape around the fenestration or with an antimicrobial incise panel. Please call for availability of the special order items. Laparotomy sheets are available with the #3205 44" X 78" (112 cm X 198 cm) table cover or as custom kits as well.

Product Number Overall Size
(W X L)
Top to Center of Fenestration (F) Fenestration Size Product Number with Table Cover
3087 80" X 165"
(203 cm X 419 cm)
82" (210 cm) 4" X 14"
(10 cm X 36 cm)
5174
3088 120" X 160"
(305 cm X 406 cm)
80" (203 cm) 4" X 14"
(10 cm X 36 cm)
5191
3089 140" X 210"
(356 cm X 533 cm)
105" (267 cm) 4" X 14"
(10 cm X 36 cm)
5192

Large animal laparotomy sheets

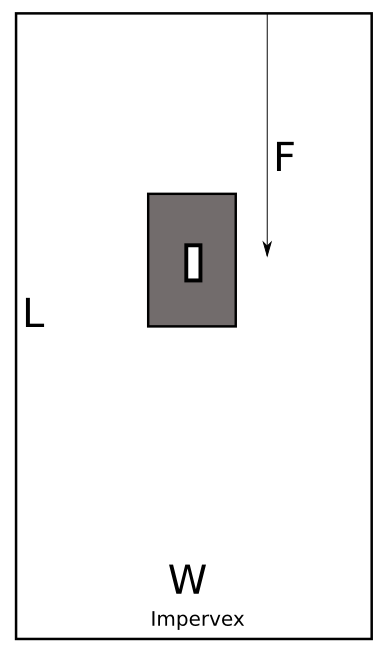

Lap Sheet Drawing All laparotomy sheets are assembled using Impervex material. #3070 features an absorbent reinforcement while the #3080 and #3085 feature a plastic coated reinforcement to minimize sticking of the bowel. Laparotomy sheets are also available as special order items with tape around the fenestration or with an antimicrobial incise panel. Please call for availability of the special order items. Laparotomy sheets are available with the #3205 44" X 78" (112 cm X 198 cm) table cover or as custom kits as well.
Product Number Overall Size
(W X L)
Top to Center of Fenestration (F) Fenestration Size Product Number with Table Cover
3070 RDA Sheet 80" X 110"
(203 cm X 279 cm)
55" (140 cm) 3" X 7"
(8 cm X 18 cm)
5065
3080 Tullener's Sheet 80" X 160"
(203 cm X 406 cm)
80" (203 cm) 4" X 14"
(10 cm X 36 cm)
5107
3085 140" X 210"
(356 cm X 533 cm)
105" (267 cm) 4" X 14"
(10 cm X 36 cm)
3086
3083 180" X 210"
(457 cm X 533 cm)
105" (267 mc) 4" X 14"
(10 cm X 36 cm)

Laparotomy accessories

Product No. 3103
23" X 53" (58 cm X 135 cm) plastic enterotomy tray cover for Shank's table. Sterile.

Product No. 3104
40" X 45" (102 cm X 114 cm) plastic enterotomy tray cover. 5" X 5" (13 cm X 13 cm) adhesive square in center to adhere cover to tray. Sterile.

Gray colored components are impervious reinforcements.Impervious Reinforcements Navy colored components are polyfoam.Polyfoam Yellow components are incise material.Incise Material Orange colored components are adhesive.Adhesive
Drape Materials
Drape Reinforcements
Other Notes
AAMI PB70 Classification System
Drapes OR Apparel OR Supplies
